Understanding Metallurgy

Introduction to Metallurgy

Metallurgy is the branch of science and engineering that studies the physical and chemical behavior of metallic elements, their intermetallic compounds, and their mixtures, which are called alloys. Metallurgy has been pivotal in the development of human civilization, from the Bronze Age to the modern era, where metals play a critical role in various industries, including construction, automotive, aerospace, electronics, and medicine.

This article is designed to provide a comprehensive understanding of metallurgy, covering fundamental concepts, types of metallurgy, metallurgical processes, and the applications of different metals and alloys.

Types of Metallurgy

Metallurgy can be broadly divided into three categories:

a. Extractive Metallurgy

Extractive metallurgy focuses on the extraction of metals from their ores and refining them into pure metal. This branch is divided into three sub-branches:

• Pyrometallurgy: The use of high temperatures to extract and purify metals. A classic example is the extraction of iron from its ore, hematite (Fe₂O₃), in a blast furnace. Here, the iron ore is reduced to iron by carbon monoxide, a byproduct of burning coke (carbon) in the presence of hot air.
• Hydrometallurgy: The use of aqueous solutions to extract metals from ores. A notable example is the extraction of gold using cyanide leaching, where gold is dissolved in a cyanide solution to form a soluble complex, which is then recovered from the solution.
• Electrometallurgy: The use of electrical energy to extract metals. Aluminum production via electrolysis of molten alumina (Al₂O₃) dissolved in cryolite is a prime example. The Hall-Héroult process is the most widely used method for aluminum extraction.

b. Physical Metallurgy

Physical metallurgy focuses on the physical properties and structure of metals and alloys. It involves understanding and controlling the microstructure of materials to achieve desired mechanical properties such as strength, toughness, and hardness. Key concepts include:

• Phase Diagrams: Graphical representations of the phases present in a material at different temperatures and compositions. The iron-carbon phase diagram, for example, is essential for understanding steel production and properties.
• Heat Treatment: Processes like annealing, quenching, and tempering are used to alter the microstructure of metals to improve their mechanical properties. For instance, tempering quenched steel reduces brittleness while maintaining hardness.
• Crystal Structure: The arrangement of atoms in a metal, which influences its properties. Metals like aluminum and copper have a face-centered cubic (FCC) structure, making them ductile, while iron has a body-centered cubic (BCC) structure, which is less ductile but stronger.

c. Mechanical Metallurgy

Mechanical metallurgy deals with the behavior of metals under mechanical forces. It involves studying stress-strain relationships, fracture mechanics, and the effects of temperature and strain rate on materials. Key concepts include:

• Stress-Strain Curve: A graph that shows how a material deforms under stress. The yield strength, ultimate tensile strength, and ductility of a material can be determined from this curve.
• Fracture Mechanics: The study of crack propagation in materials. Understanding how cracks form and grow helps in designing materials that are resistant to fracture.
• Fatigue and Creep: Fatigue is the weakening of a material due to repeated loading, while creep is the slow deformation of a material under constant stress at high temperatures. Both are critical considerations in the design of components like aircraft engines and turbine blades.

Metallurgical Processes

Metallurgy involves several key processes that transform raw metals into usable materials. These processes can be broadly classified into two categories:

a. Casting

Casting is the process of pouring molten metal into a mold to achieve a desired shape. It is one of the oldest metal-forming techniques, dating back to ancient civilizations. Common casting methods include:

• Sand Casting: Molten metal is poured into a sand mold, which is then broken away to reveal the cast part. This method is widely used for large components like engine blocks.
• Die Casting: Molten metal is forced into a metal mold under high pressure. This method is used for producing high-precision components, such as automotive parts.
• Investment Casting: Also known as lost-wax casting, this process involves creating a wax model of the part, coating it with ceramic material to form a mold, and then melting away the wax before pouring in the molten metal. It is used for making intricate parts like turbine blades.

b. Forming

Forming processes involve shaping metals by deforming them, typically using compressive forces. Key forming processes include:

• Forging: Deforming metal under high pressure, usually by hammering or pressing. Forged parts, such as crankshafts and connecting rods, are known for their strength and toughness.
• Rolling: Passing metal through a series of rollers to reduce thickness or change its cross-sectional shape. Steel plates, sheets, and beams are commonly produced through rolling.
• Extrusion: Forcing metal through a die to create objects with a fixed cross-sectional profile. Aluminum window frames and plastic pipes are examples of extruded products.
• Drawing: Pulling metal through a die to reduce its diameter. Wire and tubing are often produced by drawing.

Common Metals and Alloys

Metallurgy involves working with a wide range of metals and alloys, each with unique properties and applications.

a. Ferrous Metals

Ferrous metals contain iron as their main component and are known for their strength and durability. Common ferrous metals include:

• Steel: An alloy of iron and carbon, steel is the most widely used metal in the world. It comes in various grades, such as carbon steel, stainless steel, and tool steel, each with specific properties and applications. For example, stainless steel is used in kitchen appliances due to its corrosion resistance, while high-carbon steel is used in cutting tools for its hardness.
• Cast Iron: An iron-carbon alloy with a high carbon content (typically 2-4%), cast iron is known for its excellent castability and machinability. It is used in engine blocks, pipes, and cookware.

b. Non-Ferrous Metals

Non-ferrous metals do not contain iron and are known for their resistance to rust and corrosion. Common non-ferrous metals include:

• Aluminum: A lightweight, corrosion-resistant metal widely used in aerospace, automotive, and packaging industries. Aluminum alloys, such as 6061 and 7075, offer a good balance of strength and weight.
• Copper: Known for its excellent electrical and thermal conductivity, copper is used in electrical wiring, plumbing, and heat exchangers. Brass (copper-zinc alloy) and bronze (copper-tin alloy) are common copper alloys with various applications.
• Titanium: A strong, lightweight metal with excellent corrosion resistance, titanium is used in aerospace, medical implants, and chemical processing equipment. Titanium alloys like Ti-6Al-4V are commonly used in aircraft structures.

c. Precious Metals

Precious metals are rare and have high economic value. They are often used in jewelry, electronics, and as investment commodities. Common precious metals include:

• Gold: Known for its luster, malleability, and resistance to tarnish, gold is used in jewelry, electronics, and as a standard for currency. Gold alloys, such as white gold and rose gold, are used to create different colors and improve hardness.
• Silver: Known for its conductivity and reflectivity, silver is used in jewelry, electronics, and mirrors. Sterling silver (92.5% silver, 7.5% copper) is a common alloy used in jewelry and cutlery.
• Platinum: A dense, corrosion-resistant metal used in jewelry, catalytic converters, and medical devices. Platinum is also used in chemical processing equipment due to its resistance to chemical attack.

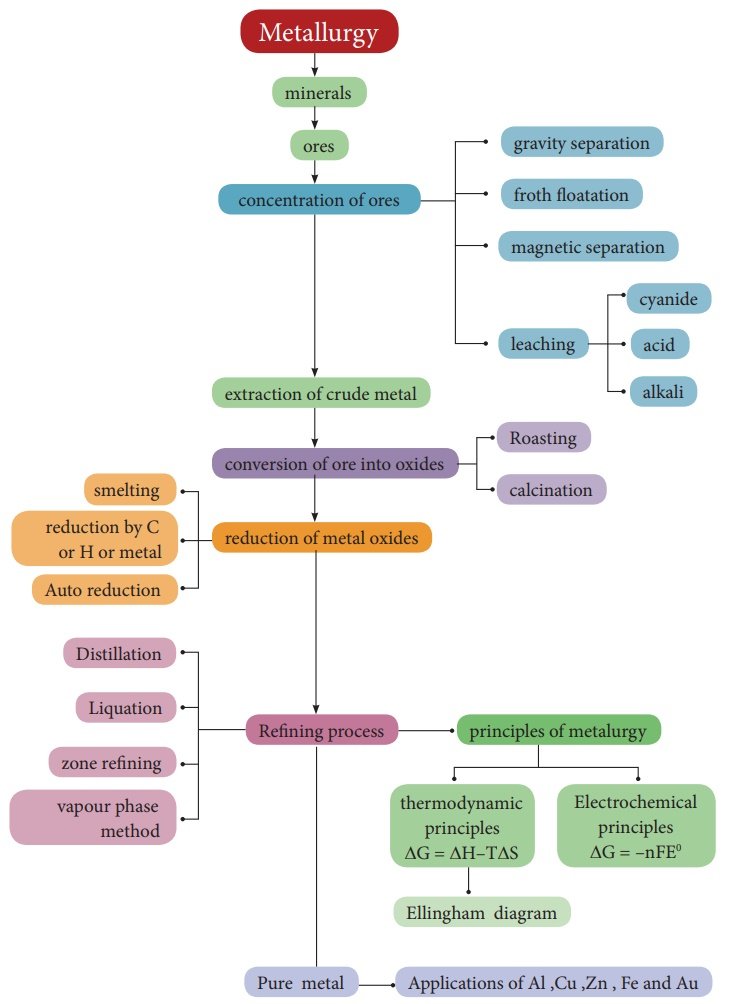

Credit: Brain Kart

Metallurgical Testing and Quality Control

Metallurgical testing is essential to ensure that metals and alloys meet the required specifications and performance criteria. Common testing methods include:

a. Mechanical Testing

• Tensile Testing: Measures the strength and ductility of a material by pulling it apart until it breaks.

• Hardness Testing: Measures a material’s resistance to indentation. Common methods include Rockwell, Vickers, and Brinell hardness tests.
• Impact Testing: Measures a material’s toughness by striking it with a hammer at high speed. The Charpy and Izod tests are commonly used.

b. Non-Destructive Testing (NDT)

• Ultrasonic Testing: Uses high-frequency sound waves to detect internal flaws in a material.
• Radiographic Testing: Uses X-rays or gamma rays to detect internal defects, such as cracks or voids.
• Magnetic Particle Testing: Detects surface and near-surface defects in ferromagnetic materials by applying a magnetic field and dusting the surface with magnetic particles.

c. Chemical Analysis

• Spectroscopy: Used to determine the elemental composition of a material. Optical emission spectroscopy (OES) and X-ray fluorescence (XRF) are common techniques.
• Wet Chemical Analysis: Involves dissolving a sample in acid and analyzing it using chemical reactions to determine the composition.

Applications of Metallurgy

Metallurgy has far-reaching applications across various industries:

• Construction: Steel and aluminum are used in building structures, bridges, and infrastructure projects.
• Automotive: Metals like steel, aluminum, and magnesium are used in vehicle bodies, engines, and components to reduce weight and improve fuel efficiency.
• Aerospace: Titanium and aluminum alloys are used in aircraft structures, while superalloys are used

 in jet engines for their high-temperature strength.

• Electronics: Copper, gold, and silver are used in electrical wiring, connectors, and circuit boards due to their excellent conductivity.
• Medical: Stainless steel, titanium, and cobalt-chromium alloys are used in surgical instruments, implants, and prosthetics for their biocompatibility and corrosion resistance.
• Energy: Metals are used in power generation, transmission, and storage, including materials for turbines, transformers, and batteries.

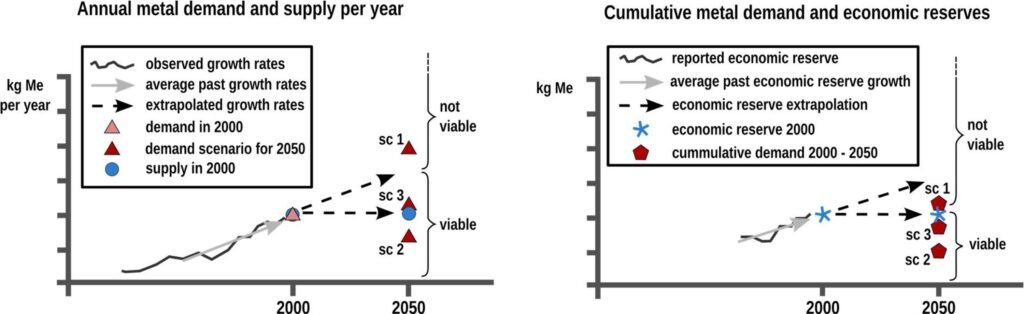

Credit: Science Direct

Conclusion

Metallurgy is a vast and complex field that plays a crucial role in modern society. Understanding the fundamental concepts of metallurgy, from extraction and refining to the properties and applications of different metals and alloys, is essential for anyone working in industries where metals are used. Whether you are a student, engineer, or industry professional, a solid grasp of metallurgical principles will enable you to make informed decisions and contribute to the development of new materials and technologies.
